Miniature S-Beam    MODEL  333FDX

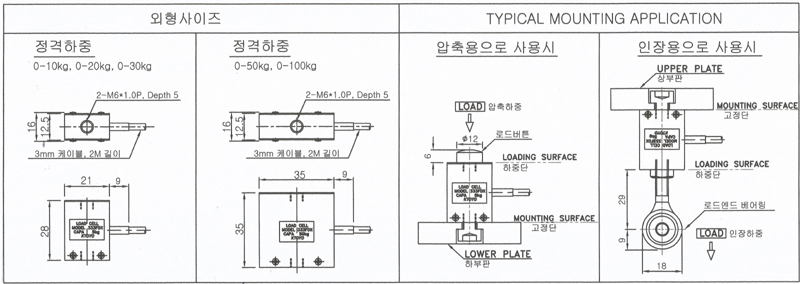

16mm× 21mm × 28mm height
Capacity   0¡­10kg ,  0¡­20kg,  0¡­30kg,  0¡­50kg,  0¡­100kg

SPECIFICATION

 Model

       333FDX

 Rated Capacity (R.C)

    10kg, 20kg, 30kg, 50kg, 100kg

 Rated Output (R.O)          1.5 mv/v ± 10%

 Non-linearity

         ± 0.05% R.O.

 Hysteresis

         ± 0.05% R.O.

 Repeatability

         ± 0.05% R.O.

 Zero Balance

         ± 10% R.O.

 Excitation, Nominal

         3VDC
 Excitation, Maximum          5VDC
 Resistance, Input          420 Ohm ± 50 Ohm
 Resistance, Output          350 Ohm ± 50 Ohm
 Insulation Resistance        Minimum 1000 Megan Ohm

 Temporary  Compensated

         -5  ~ 50¡É

 Temporary Operated

        -10  ~ 70¡É
 Temp. Code. Zero        ±0.3% R.O. /10¡É
 Temp. Code. Span         ±0.15% Load /10¡É
 Safe Overload       150% R.C.
 Cable  ¥õmm PVC Jacket, 4 conductor,
 Shielded cable,  2 length

 Cable color code
 ( Positive signal in

  tension direction )

 Red (+Ex ),  Black (-Ex),
 Green(+
Signal
),  White(-Signal),
  Bare(Shield)

Feature
¡Ü  Miniature loadcell for tension  & compression
¡Ü
 Compact size for limited space

Application
¡Ü  Precision force measurement
