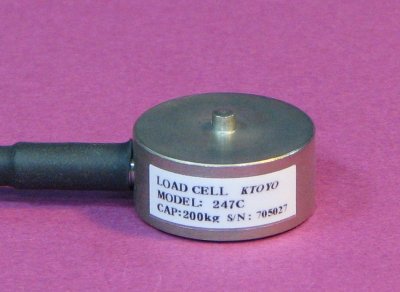

Miniature Load cell   MODEL  247C

17mm Diameter × 10mm Height       Capacity  0¡­5kg ...  0¡­500kg
   * without  bottom tap hole

SPECIFICATION

 Model

       247C

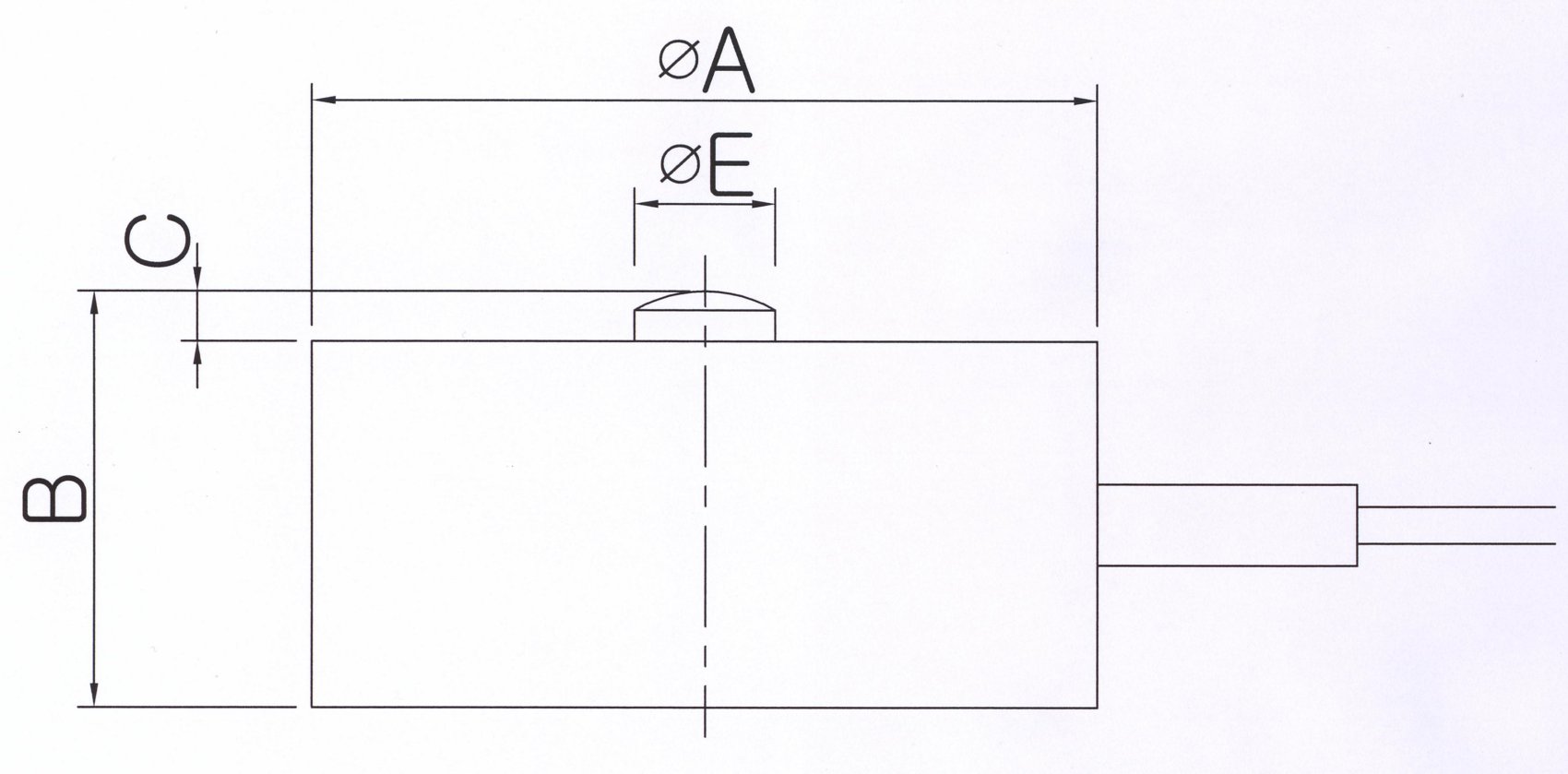

Dimension ( mm )

Capacity

A

B

C

E

5kg

¥õ17

10

2

¥õ2.6

10kg ~ 200kg

¥õ20

11

2

¥õ2.6

500kg

¥õ20

15

3

¥õ2.6

 Rated Capacity (R.C)

      5kg, 10, 50 ,100, 200, 500kg

 Rated Output (R.O)            1.0 mv/v ± 10%

 Non-linearity

           ± 0.2% R.O.

 Hysteresis

           ± 0.2% R.O.

 Repeatability

           ± 0.1% R.O.

 Zero Balance

           ± 10% R.O.

 Excitation, Nominal

            3VDC
 Excitation, Maximum             5VDC
 Resistance, Input             350 Ohm ± 10 Ohm
 Resistance, Output             350 Ohm ± 5 Ohm
 Insulation Resistance            Minimum 1000 Mega Ohm
 Temp.Range  Operated             -5  ~ 60¡É
 Temp. Coef. Zero             ±0.3% R.O. /10¡É
 Temp. Coef. Span              ±0.15% Load /10¡É
 Safe Overload             150% R.C.
 Cable  ¥õ3mm PVC Jacket, 4 conductor,  Shielded cable,  2m length

 Cable color code

 Red (+Excitation ), Black (-Exc ),
 Green(+
Signal
),  White(-Signal
),
 Bare(Shield)

Feature
¡Ü  Miniature load cell without  bottom tap hole
¡Ü
 Compact size for limited space

Application
¡Ü  Precision force measurement
