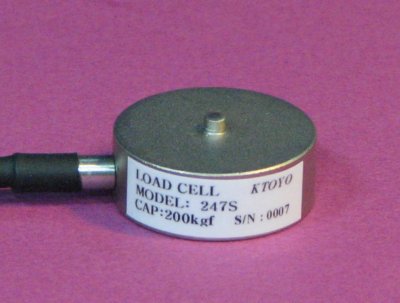

Miniature Load cell   MODEL  247S

 25mm Diameter × 10mm Height         Capacity  0¡­2kg ...  0¡­500kg
   * with bottom tap hole



SPECIFICATION

 Model

       247S

Dimension ( mm )

Capacity A B C D E
2kg , 5kg ¥õ25 10 2 ¥õ20.5 ¥õ2.6
10kg ~ 200kg ¥õ25 11 2 ¥õ20.5 ¥õ2.6
500kg ¥õ25 15 3 ¥õ20.5 ¥õ2.6
 Rated Capacity (R.C)

2kg, 5kg, 10kg, 50kg ,100kg, 200kg, 500kg

 Rated Output (R.O)            1.0 mv/v ± 10%

 Non-linearity

           ± 0.2% R.O.

 Hysteresis

           ± 0.2% R.O.

 Repeatability

           ± 0.1% R.O.

 Zero Balance

           ± 10% R.O.

 Excitation, Nominal

            3VDC
 Excitation, Maximum             5VDC
 Resistance, Input             350 Ohm ± 10 Ohm
 Resistance, Output             350 Ohm ± 5 Ohm
 Insulation Resistance            Minimum 1000 Mega Ohm
 Temp.Range  Operated             -10  ~ 60¡É
 Temp. Coef. Zero             ±0.3% R.O. /10¡É
 Temp. Coef. Span              ±0.15% Load /10¡É
 Safe Overload             150% R.C.
 Cable  ¥õ3mm PVC Jacket, 4 conductor,  Shielded cable,  2m length

 Cable color code

 Red (+Excitation ), Black (-Exc ),
 Green(+
Signal
),  White(-Signal
),
 Bare(Shield)

Feature
¡Ü  Miniature load cell with bottom tap hole
¡Ü
 Compact size for limited space

Application
¡Ü  Precision force measurement
